Drone Payloads Africa

The aerial data that transforms a drone programme into a commercially productive operation comes from the payload—the sensor system that determines what the aircraft measures, detects, identifies and documents on every flight. Aerosmart supplies the complete DJI Zenmuse payload range to professional operators across more than 14 African countries, with genuine, warranted sensor systems covering inspection, surveying, mapping, night operations, illumination and aerial communication requirements.

The payload decision is where the return on an aircraft investment is determined. A Matrice 400 or Matrice 350 RTK without the correct sensor is an airframe that covers distance without collecting useful intelligence. The same aircraft paired with the Zenmuse H30 thermal and zoom multi-sensor system becomes a powerline inspection tool, a public-safety night surveillance platform and a search-and-rescue aerial intelligence system.

Aerosmart's payload consultation process helps ensure that every African operator receives the appropriate Zenmuse configuration for the intended platform, application and mission before the purchase is finalised. A mining survey operator in Zambia, a conservation organisation in Kenya and an oil-and-gas inspection company in Nigeria may require different payload configurations on the same DJI aircraft platform.

DJI Zenmuse H30 Series — All-Weather Multi-Sensor System

The Zenmuse H30 Series combines multiple sensor modules in a single all-weather payload. Its capabilities include a 40MP zoom camera with powerful optical and digital zoom, a wide-angle camera with enhanced night vision, a 640 × 512 thermal camera on the H30T model, an integrated laser rangefinder and near-infrared auxiliary lighting for close-range night operations.

For powerline inspection across Kenya's transmission grid, Nigeria's electricity infrastructure and Ghana's power network, the H30T can help identify conductor faults, overheating connections and damaged components from a safe distance. For conservation night patrols in Botswana and Uganda, thermal imaging can help identify human heat signatures in low-light environments and difficult terrain. The H30 Series is compatible with the Matrice 400, Matrice 350 RTK and Matrice 300 RTK, subject to aircraft and firmware configuration.

DJI Zenmuse L3 — Long-Range High-Accuracy LiDAR

The Zenmuse L3 is designed for extensive LiDAR data collection with the Matrice 400. It combines long-range laser scanning, multiple returns and high-resolution RGB mapping cameras, allowing operators to capture point clouds and photographic datasets during the same mission.

Its capabilities support large mining concessions, land registration projects, infrastructure corridors, forestry surveys and powerline mapping. The Zenmuse L3 is compatible exclusively with the DJI Matrice 400.

DJI Zenmuse L2 — Standard LiDAR Survey Payload

The Zenmuse L2 provides centimetre-level survey capability, multiple returns for vegetation penetration, real-time point cloud viewing and integration with DJI Terra processing workflows. It is suitable for professional cadastral, mining, construction, forestry and infrastructure survey programmes where the maximum specifications of the Zenmuse L3 are not required.

The Zenmuse L2 is compatible with the Matrice 350 RTK and Matrice 300 RTK, subject to supported aircraft and firmware configurations.

DJI Zenmuse P1 — Full-Frame Photogrammetry

The Zenmuse P1 combines a 45MP full-frame sensor, global mechanical shutter and interchangeable fixed-focus lenses for professional photogrammetry. It supports orthophoto production, digital surface modelling, land titling, construction documentation and detailed 3D reconstruction.

Smart Oblique Capture automates multi-angle image collection for building and infrastructure modelling. The Zenmuse P1 is compatible with the Matrice 400, Matrice 350 RTK and Matrice 300 RTK, subject to supported configurations.

DJI Zenmuse H20N — Night-Vision Multi-Sensor

The Zenmuse H20N combines starlight-grade visible cameras with dual thermal cameras for professional operations in low-light and no-light environments. Its synchronised visible and thermal zoom helps operators maintain corresponding magnification across both feeds while monitoring a subject.

It is particularly suited to anti-poaching operations, conservation patrols, perimeter security and public-safety missions conducted between sunset and sunrise. The Zenmuse H20N is designed for the Matrice 300 RTK.

DJI Zenmuse S1 — LEP Spotlight Payload

The Zenmuse S1 spotlight supports night-time illumination on compatible multi-payload aircraft. It can be deployed alongside an observation or thermal payload, allowing operators to combine active illumination with visual and thermal monitoring.

Typical applications include emergency response, search and rescue, infrastructure inspection, public safety and security operations. Compatibility depends on the aircraft mounting configuration and supported payload combination.

DJI Zenmuse V1 — Aerial Loudspeaker Payload

The Zenmuse V1 provides high-output aerial broadcasting for emergency communication, public-safety instructions, conservation operations and large-area incident response. It supports live broadcasting, recorded audio, text-to-speech and file playback modes.

The V1 can be used for evacuation instructions, search-and-rescue communication, crowd management and coordination across locations where ground-level loudspeaker coverage is limited.

Payload Selection Guide for Africa

Matching DJI Drone Payloads to African Operational Requirements

Compare DJI enterprise payloads by application and aircraft compatibility to select the appropriate solution for inspection, surveying, conservation, emergency response and other professional operations across Africa.

DJI drone payload selection guide for professional operations across Africa

Application	Recommended Payload	Platform Compatibility
Powerline thermal inspection	Zenmuse H30T	M400, M350 RTK, M300 RTK
LiDAR mining survey — large scale	Zenmuse L3	Matrice 400 only
LiDAR cadastral and construction survey	Zenmuse L2	M350 RTK, M300 RTK
Photogrammetry, land titling and mapping	Zenmuse P1	M400, M350 RTK, M300 RTK
Anti-poaching and conservation night patrol	Zenmuse H20N	Matrice 300 RTK
Night-operations spotlight illumination	Zenmuse S1	M400, M350 RTK, M300 RTK
Emergency-rescue broadcast communication	Zenmuse V1	M400, M350 RTK, M300 RTK

Payload compatibility may depend on aircraft configuration, firmware, mounting requirements and regional availability. Contact Aerosmart for technical compatibility verification, payload selection and delivery support across Africa.

Industry Applications

DJI Drone Payloads Serving Africa's Key Industries

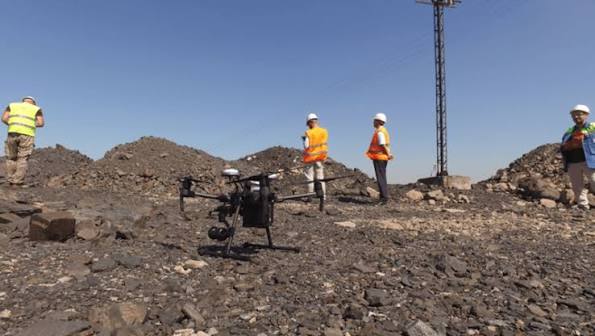

Mining — Volumetric and Site Survey

The Zenmuse L3 paired with the Matrice 400 supports large-scale LiDAR surveys across copper, gold and platinum mining concessions in Zambia, Ghana, Zimbabwe and Mozambique. Its multiple-return capability captures complex pit-face geometry while supporting extensive daily survey coverage.

Learn More ›

Conservation — Night Anti-Poaching Operations

The Zenmuse H20N supports starlight and dual-thermal night patrols across Kenya's conservation areas, Botswana's national parks and Uganda's protected forest zones. Its thermal and visible imaging capabilities support subject detection in low-light environments.

Learn More ›

Land Administration — Cadastral Survey

The Zenmuse P1 with a compatible RTK base station supports land-titling programmes in Rwanda, Kenya, Tanzania, Ethiopia and Uganda. Smart Oblique Capture produces detailed building models alongside terrain orthophotos for cadastral projects.

Learn More ›

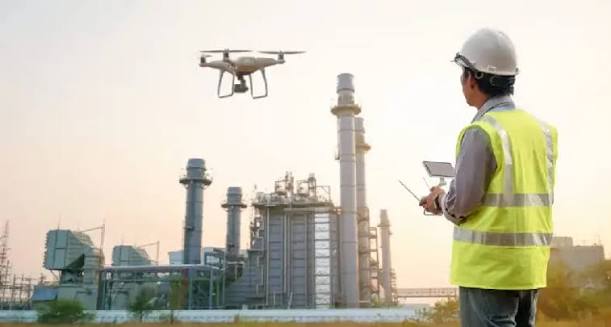

Oil and Gas — Facility Inspection

The Zenmuse H30T provides thermal imaging and high-zoom inspection capability for oil-and-gas facilities in Nigeria, Angola and Mozambique. Radiometric temperature measurement supports process-equipment and electrical-system inspections.

Learn More ›

Emergency Response — Communication and Illumination

The Zenmuse V1 loudspeaker and Zenmuse S1 spotlight can support cyclone response, flood emergencies and search-and-rescue operations. The combined system provides aerial observation, illumination and broadcast communication.

Learn More ›

Why African Operators Choose Aerosmart for DJI Drone Payloads

Aerosmart supports professional drone operators, survey teams, security organisations, infrastructure companies and government agencies across Africa with genuine DJI Zenmuse payloads, verified platform compatibility, official product documentation, international delivery assistance and multilingual technical support.

Platform Compatibility Confirmed Before Purchase
Compatibility across the DJI Zenmuse payload range is not universal. The Zenmuse L3 operates exclusively with the Matrice 400, while the Zenmuse H20N is designed for the Matrice 300 RTK. Simultaneous multi-payload deployment also requires supported aircraft ports and mounting combinations. Aerosmart confirms the required configuration before the purchase is finalised.

Genuine Documentation for Aviation Authority Registration
Every DJI Zenmuse payload supplied by Aerosmart includes official serial-number documentation and applicable DJI product paperwork. These documents support equipment registration, asset verification and compliance procedures with national aviation authorities.

Delivery and Customs-Clearance Support
Aerosmart arranges direct shipping from Dubai to more than 14 African countries with export documentation, official DJI product paperwork and practical import guidance. Correct documentation helps reduce delays and administrative difficulties during customs clearance.

Training and Workflow Support in Three Languages
Aerosmart provides guidance covering payload configuration, DJI Pilot 2 integration, thermal-camera setup, calibration procedures, LiDAR data-collection and processing workflows, and multi-payload configuration. Remote assistance is available in English, Arabic and French.

Frequently Asked Questions — DJI Drone Payloads Africa

1. What DJI drone payloads are available in Africa?

   Aerosmart supplies a comprehensive range of DJI Zenmuse payloads across more than 14 African countries, including the Zenmuse H30 Series, L3, L2, P1, H20, H20T, H20N, S1 and V1. Payloads are supplied with applicable DJI warranty, current firmware and official product documentation.

2. What is the best DJI thermal payload for Africa?

   The DJI Zenmuse H30T is a leading thermal payload for professional operations across Africa. It combines thermal imaging, optical zoom, wide-angle imaging, enhanced night vision, laser rangefinding and near-infrared auxiliary lighting in one integrated unit.

3. Which DJI LiDAR payload is best for mining surveys in Africa?

   The DJI Zenmuse L3 paired with the Matrice 400 is suitable for high-performance, large-scale mining surveys. The Zenmuse L2 paired with the Matrice 350 RTK is a practical alternative for projects that do not require the maximum range and coverage capabilities of the L3.

4. Can the DJI Zenmuse H20N be used for anti-poaching patrols in Africa?

   Yes. The Zenmuse H20N is suited to anti-poaching and conservation night patrols. Its starlight cameras support low-light observation, while dual thermal cameras help identify heat signatures in darkness and through some vegetation.

5. What is the price of the DJI Zenmuse H30 in Africa?

   DJI Zenmuse H30 and H30T pricing varies according to the selected model, aircraft configuration, accessories, training requirements and destination country. Contact Aerosmart at africa@aerosmart.ae for an accurate quotation.

6. Does Aerosmart provide DJI payload training in Africa?

   Yes. Aerosmart provides payload configuration, thermal-camera setup, calibration support, LiDAR processing workflow assistance, DJI Pilot 2 integration and multi-payload configuration training. Remote assistance is available in English, Arabic and French.
